PRODUCT DESCRIPTION: Quickly locate wood strips, metal, pipes and AC wires hidden in the walls, floors and ceilings of your house. It works on flat surfaces, wallpaper, wood floors, acoustical ceilings, painted walls and more. Prevents you from danger when installing TVs, shelves, cabinets, garage shelves and more.

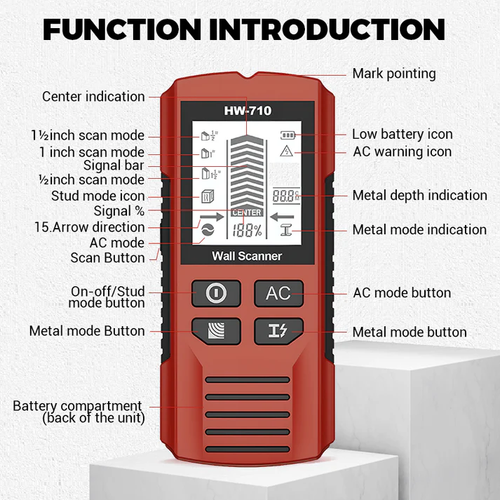

Detection Mode:

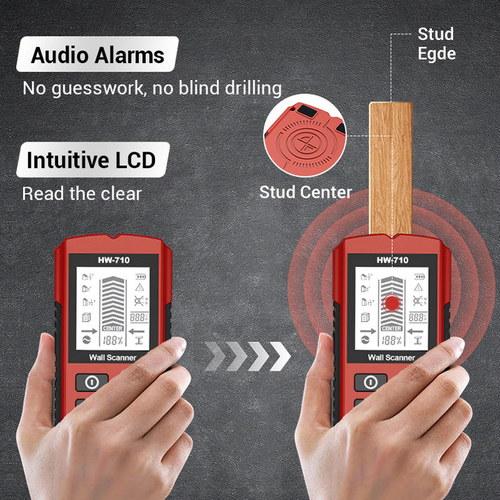

Stud Mode:
In stud mode, there are 3 scan modes o choose for properly thick of the scanning surface:
*1/2"Scan Mode can detect 1/2 in. (13mn) deep.
*1"Scan Mode can detect 1 in. (25mm)deep.
*1 1/2"Scan Mode can detect 1 1/2 in.(38mm) deep.
If you don't know the depth of the detection, it is recommended to use 1/2"scan mode first. When 1/2"scan mode is not detected, use 1"or 1 1/2"scan mode instead.
Metal Mode:
The detection of magnetic metal can be as deep as 3.2 in. (80mm)(diameter 15mm galvanized steel tube)
It can detect non-magnetic metals up tc 2.4 in. (60mm) (diameter 13mm copper tube).
AC Mode:
Detect unshielded AC live wire up to 2 in. (51mm) deep.
